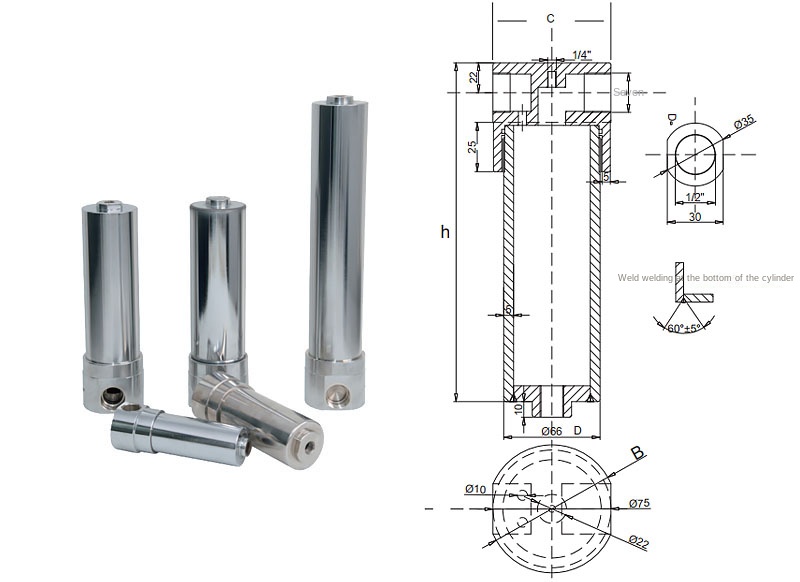

It is suitable for filtering solid and liquid impurities from compressed air below 4.0Mpa. High pressure gas precision filter is made by use of precision manufacturing process, and the requirements of high pressure technology are fully considered. The filter element made of high-grade 304, 316L stainless steel can be provided with 25, 5, 1 and 0.01um and activated carbon filter performance, to meet various special requirements of customers; it is designed by application of the principle of aerodynamics to ensure that the filter medium pressure drops to the minimum.
Linka always adheres to the quality first, quality service as the purpose, to customer first, cooperation win as the principle.Side by side, customers and dealers will develop together to create brilliant results!
Model |
Flow m³/M |
Interface |
H(High) |
C(Diameter) |
D(Sewage outlet) |
|
BXG-010* |
1 |
1/2′′ 3/4′′ 1′′ |
230mm |
80mm |
1/2 |
|
BXG-020* |
2 |
1/2′′ 3/4′′ 1′′ |
230mm |
80mm |
1/2 |
|
BXG-030* |
3 |
1′′ |
260mm |
106mm |
1/2 |
|
BXG-050* |
5 |
1-1/2′′ |
405mm |
115mm |
1/2 |
|
BXG-070* |
7 |
1-1/2′′ |
505mm |
115mm |
1/2 |
|
BXG-100* |
11 |
1-1/2′′ |
620mm |
115mm |
1/2 |
|
BXG-100* |
11 |
2′′ |
620mm |
140mm |
1/2 |
